Control Box

Category :
Box/Buzzer Control Box Control box

Control box

(Control box)

#콘트롤 박스 #Control box #CB25-1 CB25-2 CB25-3 CB25-4 CB25-5 CB30-1 CB30-2 CB30-3 CB30-4 CB30-5

1. The body material is made of cold-rolled steel and ABS.

2. Color is produced in a combination of black and silver 2 tones.

3. Outer diameter of switch mounting, divided into ∮25 and 30.

4. Control boxes are produced from 1 to 6 blocks.

Download Catalog

Product details

Certification

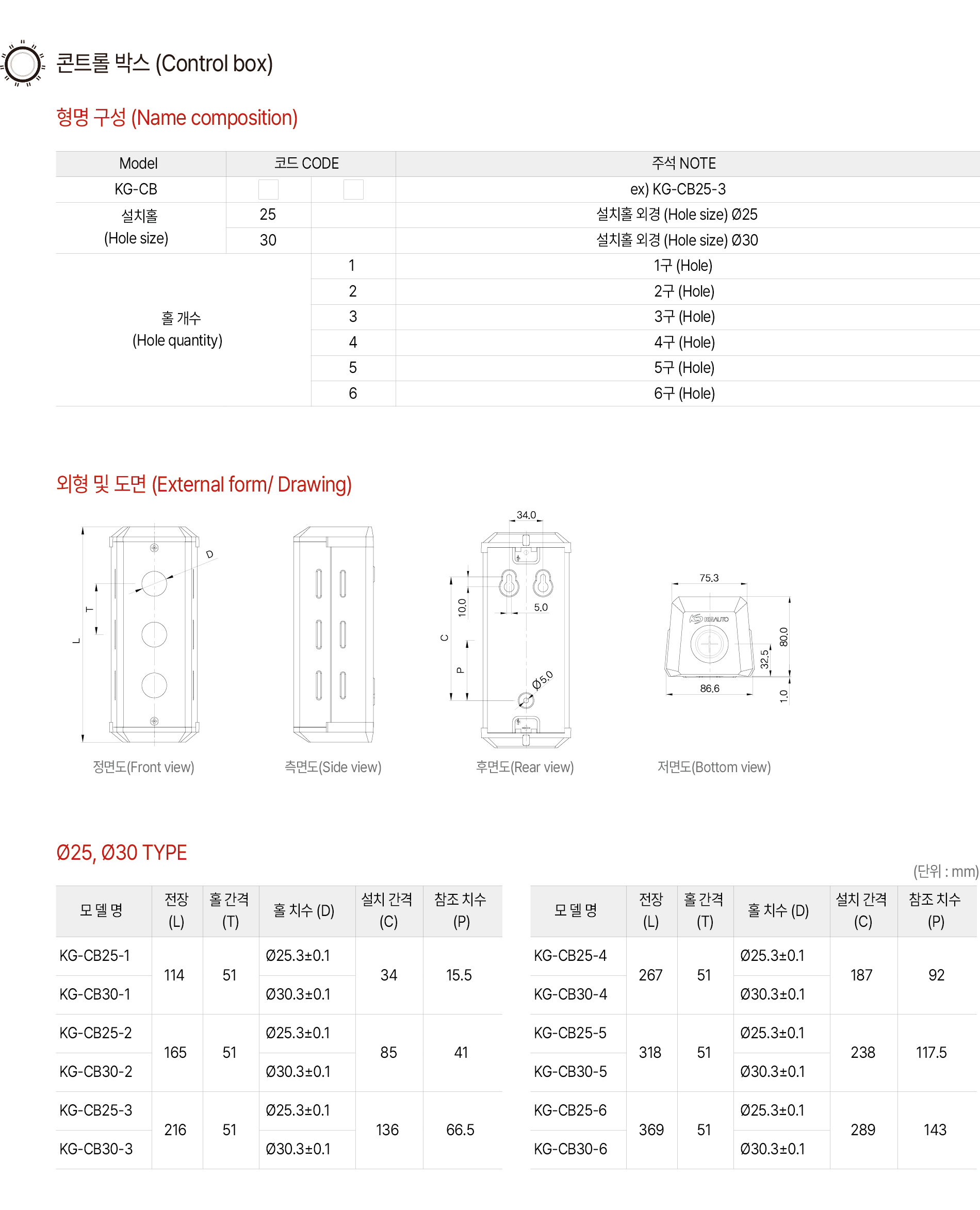

2D/3D CAD

KGP0081


KGAUTO_CB-SERIES-외형도-2.zip

KGAUTO_CB-3D-외형도-1.zip
